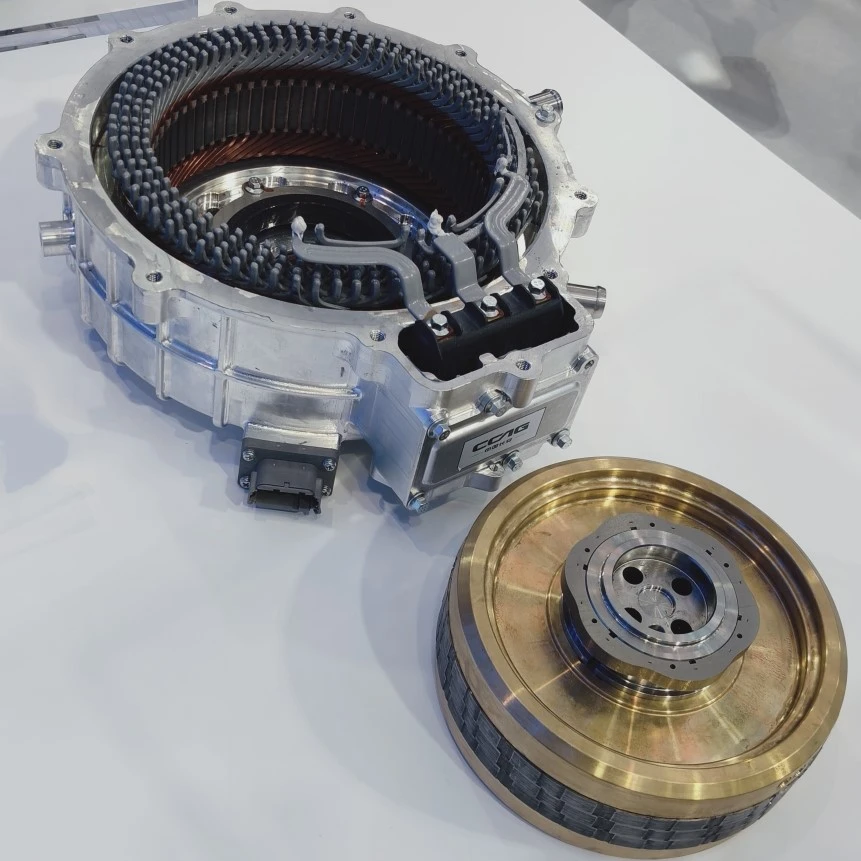

CCAG Flywheel-Integrated Generator

Direct Connection of Rotor to Engine Crankshaft
The rotor is directly connected to the engine crankshaft without bearings or a flywheel
Saves 40 mm in axial space
Φ270 mm Single-Branch 8-Layer Flat Wire Stator Design
Stator axial length ≤90 mm

Rotor Direct-Drive Structure (Bearings-Free)
The rotor is directly connected to the engine without bearings, offering a simple and reliable design
Rotor Replaces Flywheel
The rotor serves as a replacement for the engine flywheel, reducing component count.
Single-Branch 8-Layer Flat Wire
Compact dimensions, high efficiency, and space-saving architecture
