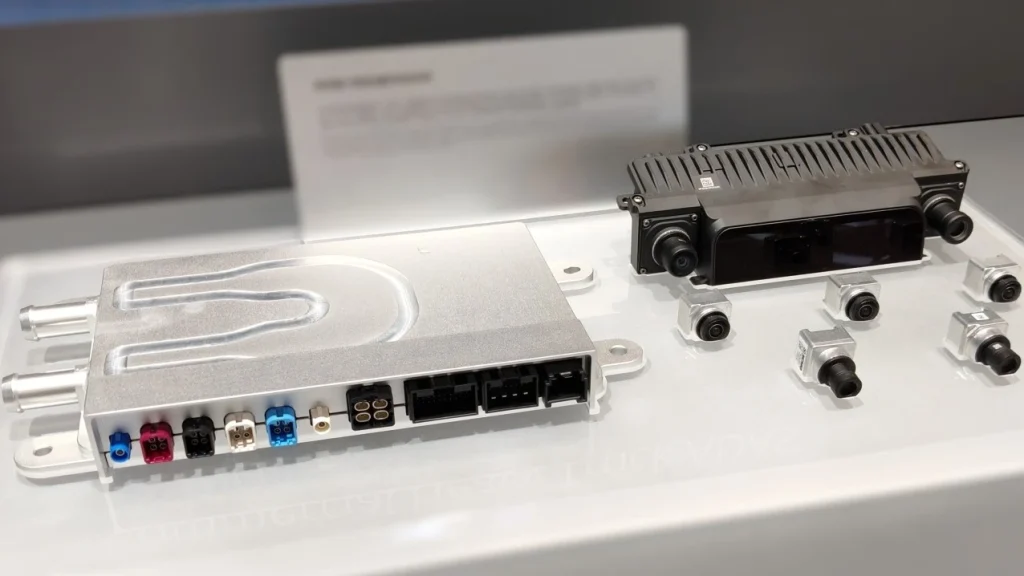

Commercial Vehicle ADAS System, based on the innovative 1L3R7V sensor configuration, including a ZYT-designed JIMUsystem, 3 pcs Topview Cameras, 2 pcs Sideview Cameras, 3pcs MMR. The configuration can be used with SA8650P controlier of 100TOPS dense computing power (200TOPS sparse computing power). Based on ZYT Platform E2E Model, E2E Commercial Vehicle Model achieves NOHD, Driving Assistance, Active Safety, supporting complete speed range (0-110km/h), supporting City / Expressway / Highway.
JIMU 2.0
Premium Content
Login to unlock full content
Weight: <550g NVH: ≤20dBA Points per second: 2,304,000 pts/s IP Rating: IP6K7 Operation Temperature: -40°C ~ +95°C Size: 190 × 42 × 63mm Power Consumption: ≤15W ASIL Level: ASIL B Hardware Interface: GMSL2
FOV
LiDAR: H120° × V20°
Wide Camera: H120° × V67°
Telephoto Camera: H30° × V17°
Angular Resolution
Long Range Mode: 0.1° × 0.1°
Ultra Long Range Mode: 0.05° × 0.033°
Detection Capability
JIMU2.0 Pro
Long Range Mode: 300m@10%
Ultra Long Range Mode: 400m@10%
JIMU2.0 SE
Long Range Mode: 220m@10%
Ultra Long Range Mode: 300m@10%

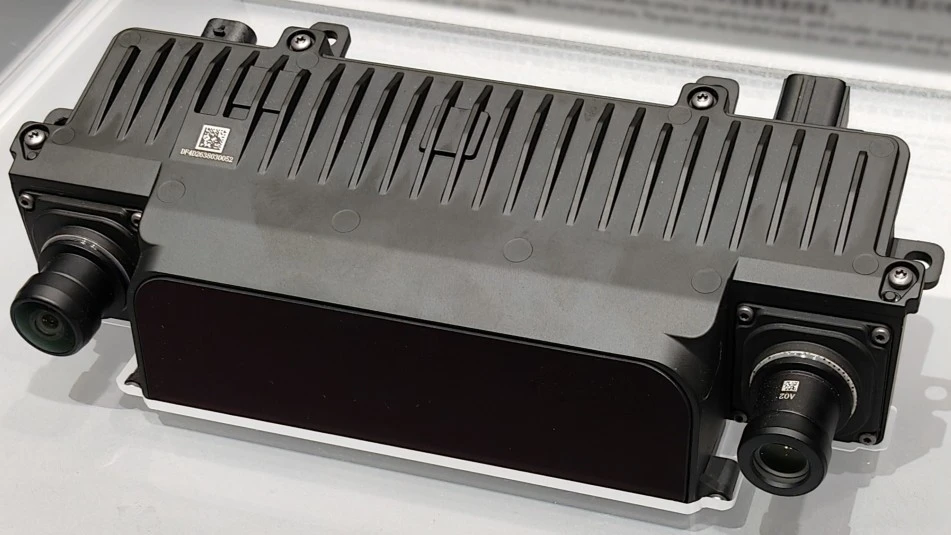

JIMU 2.0 is an automotive-grade integrated all-in-one sensor that combines wide camera, tele camera and LiDAR, with a smaller volume and greater performance. It can intelligently adjust FOV according to the current scenario. The system can be installed inside the cabin, which can meet the intelligent driving needs of various vehicle models.
