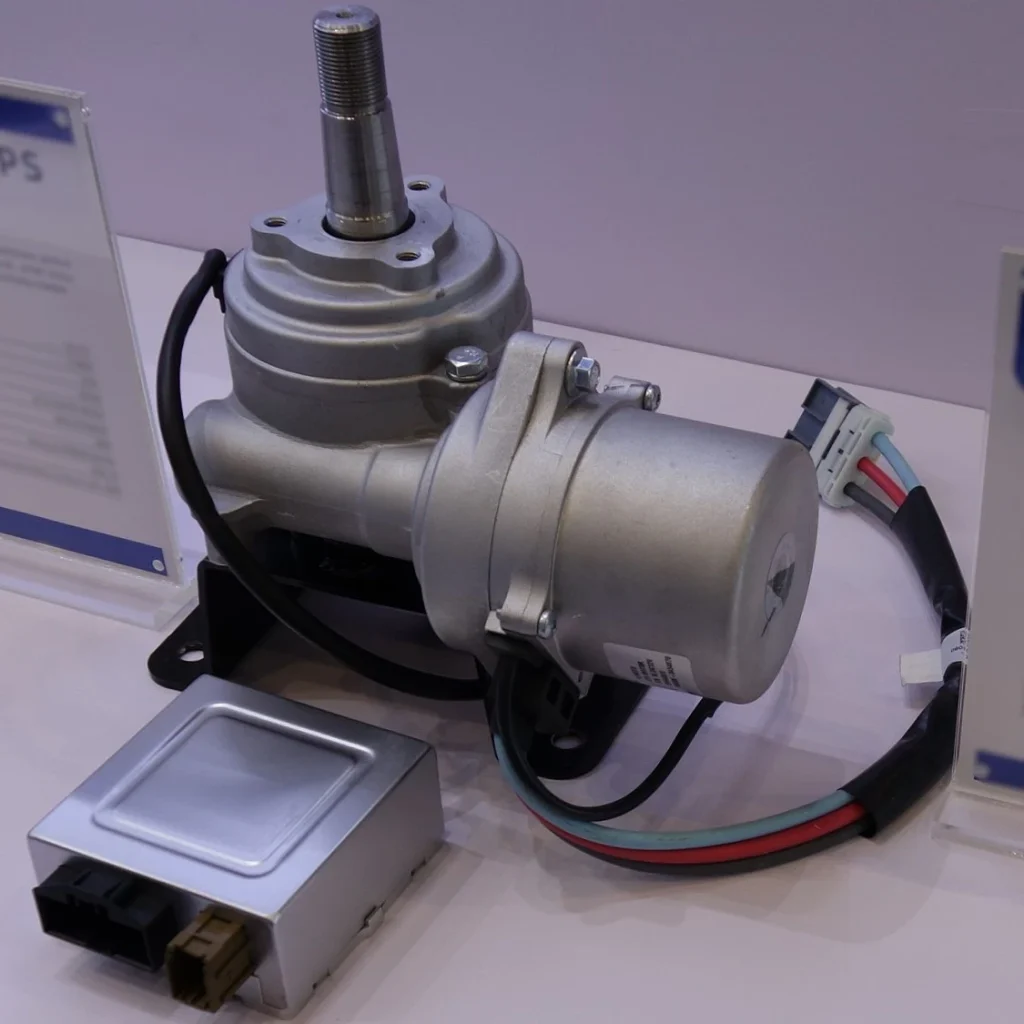

XEPS Tricycle EPS

XEPS Tricycle EPS

Column-type EPS (C-EPS) adopts a separated design for the motor and electronic control unit. It retains the advantages of brushless motors, including high efficiency, low noise and long service life, while delivering higher power and torque output compared with brushed motors, to fully meet customers’ load-bearing requirements.

Worm Gear Reduction Ratio: 18.0:1
Motor Rated Torque: 5Nm
Output Peak Current: 113A
Motor Rated Power: 570W
Motor Type: PMSM
TAS Sensor Signal: Valeo Digital
Maximum Rack Thrust: 8kN
ECU Main Control Chip: Infineon AURIX™ TC2xx Series
