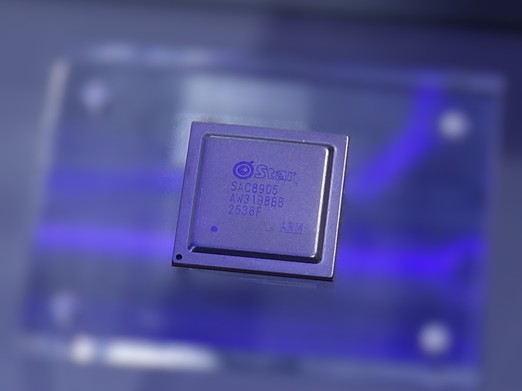

SigmaStar SAC8905
CPU: ARM Cortex-A55×6 + Cortex-A76×2, Neon and FPU
VI: Supports 8/4/2 lane mode, Data rate up to 2.5Gbps, Supports BT1120/BT656 Input
ISP: Auto White Balance (AWB) / Auto Exposure (AE) / Auto Focus (AF), High Dynamic Range (HDR), Temporal-domain Noise Reduction (3DNR)
DDR: 64bit LPDDR4/4x, LPDDR5/5x
Flash: SPINOR/SPINAND/EMMC/SD Card
ETH: 2×RGMII/RMII
Audio: Internal Analog ADC and DAC, DMIC, 4×I2S
IPU: CNN/Transformer hardware accelerator, Programmable 4/8/16-bit process, Supports Caffe/TensorFlow/ONNX etc.
VO: Supports MIPI DSI/CSI 3×4Lane, Supports TTL/BT656/BT1120/VGA/CVBS
Video Codec: H.265/H.264 4K@75fps Encoder, H.265/H.264 4K@240fps Decoder
Peripherals: USB3.1/USB2.0/PCIE 3.0, SDIO/I2C/UART/SPI/PWM/RTC/ADC
GPU: Mali 310
Security: AES/DES/3DES/RSA/SHA-I/SHA-256/SM2/3/4
Package: FCBGA 25x25mm, AEC-Q100
