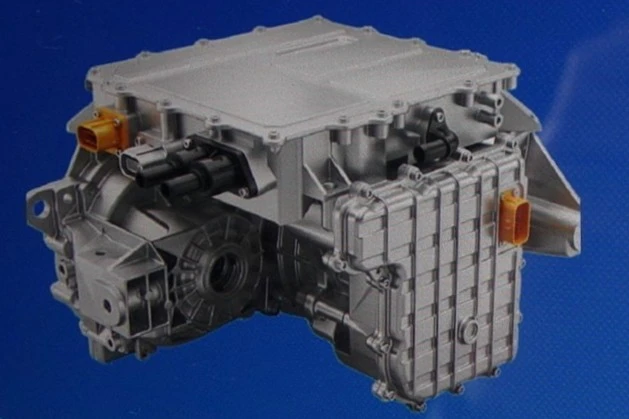

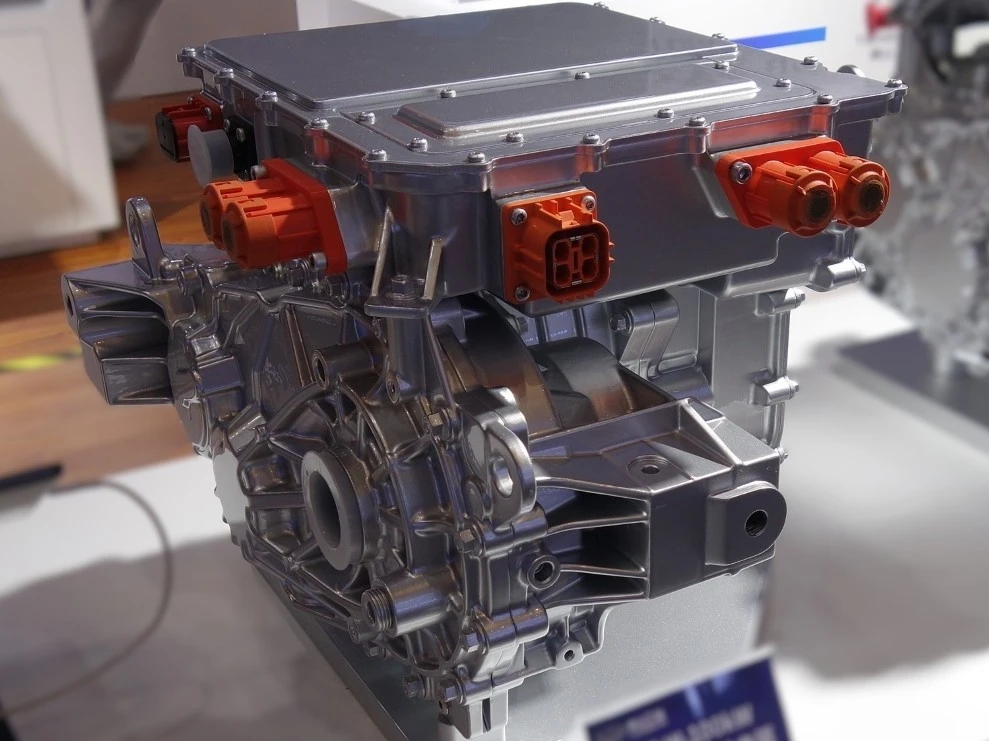

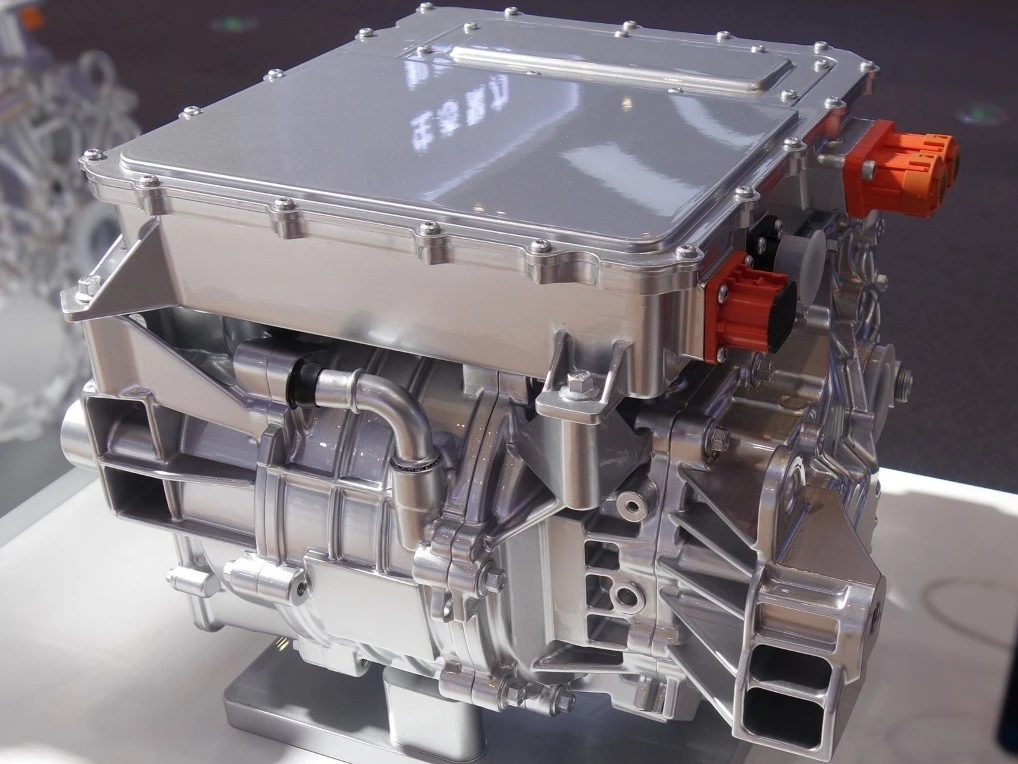

Tsingshan 60kW-100kW Centralized Parallel-Shaft E-Drive
Applicable Models: A0 class vehicles
Integrated motor, reducer, MCU, OBC, DC-AC, DC-DC, and PDU into a multi-in-one e-drive, expandable to 10-in-1.
Adopts Umini-Pin technology, industry-first wrap-around busbar structure; industry-first GaN power technology, OBC features bidirectional single-stage topology; power brick side-mounted co-housing design, with power supply, relay, and PDU top-integrated, achieving a 50.4% reduction in volume.
| 100kW Electric Drive | 60kW Electric Drive | |
|---|---|---|
| Integration Level | Expandable to 10-in-1 | Expandable to 10-in-1 |
| Peak Power (kW) | ≥100 | ≥60 |
| Peak Torque (N·m) | ≥2000 | ≥1500 |
| Power Density (kW/kg) | ≥2.04 | ≥1.28 |
| EMC | Class 3.0 | Class 3.0 |
| Functional Safety | ASIL C | ASIL C |
| Insulation Class | H | H |
| Protection Grade | IP67 | IP67 |
| Max. Efficiency (%) | 94.2 | 94.2 |
| Operating Efficiency (CLTC, %) | ≥89 | ≥89 |
| Assembly Sound Pressure Level (dB) | 76 | |
| Dimensions (X × Y × Z, mm) | ≤400 × 410 × 310 | |
| Weight (kg) | ≤49 | ≤47 |
