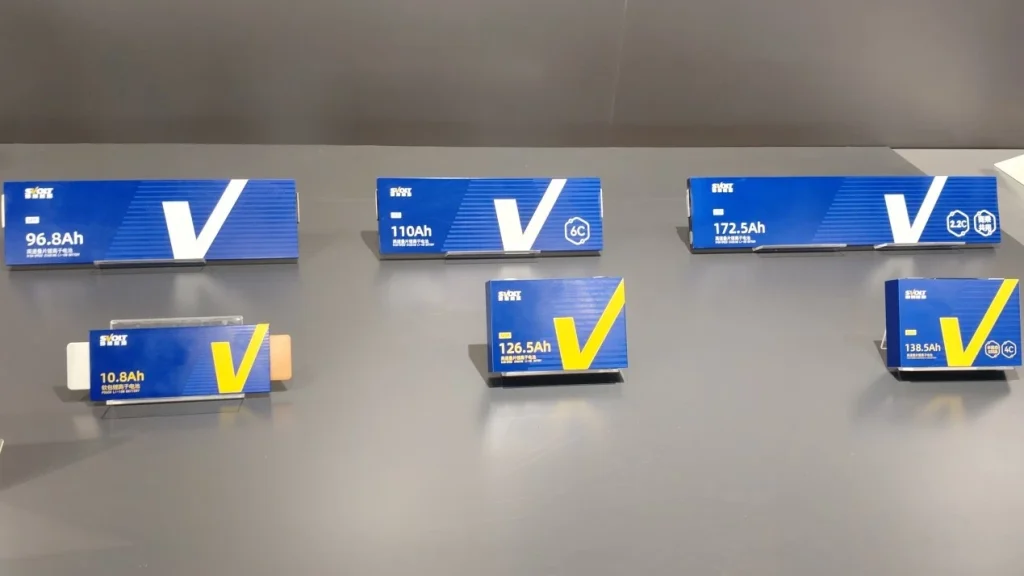

SVOLT Battery Cell Portfolio: 126.5Ah TLB, Dragon Armor 3.0 SSSB, 10.8Ah HEV Cell, and 3 Short‑Blade LFP Variants

126.5Ah Ternary Lithium Battery

Extreme Fast Charging: Peak 6C, supports 10-80% SOC in~10 minutes
Superior Thermal Safety: Withstands temperatures up to 140℃; enables no thermal runaway to adjacent cells at pack level
Exceptional Low-Temperature Performance: Capacity retention >93% at -20℃, best-in-class in the industry

Dragon Armor 3.0-129.5Ah SSSB Cell

Leveraging the innovative Dragon Scale Armor 3.0 structural design combined with the world’s first Seml-Solid Separator Coating Transfer Technology, this cell achieves balance of high safety, high energy density, and superior fast-charging capability
Enhanced Volumetric Efficiency: +3% internal space utilization, Superior Thermal Stability: T1 temperature +8℃; T2 temperature +5℃, Pack-Level Fire-Electrical Isolation: Enables complete fire-electrical separation with no thermal propagation at high operating temperature
System-Level Performance Gains: +10% pack energy capacity; +50% heat exchange efficiency, Extreme Fast Charging: Peak 6C charging capability

10.8Ah High Capacity HEV Cell

96.8Ah Short-Blade LFP Battery

Gravimetric energy density ≥193Wh/kg
≥3,500 cycles at 70% SOH
10% to 80% SOC charging in 20mins with peak discharge rate up to ≥15C
Certified to UN38.3, UL2580, UL1642,GB/T31484-2015, GB/T 38031-2020, GB/131486-2015, GB/T38031-2025, GB/T31486-2024, and others

110Ah 6C Short Blade LFP Battery

10-80% SOC in 7 minutes via 8C peak/6C (average) charging rates; supports ≥15C peak discharge
Gravimetric energy density ≥180Wh/kg
≥2000 cycles@80% SOH
Compliant with UN38.3 and GB/T standards

172.5Ah Short-Blade LFP Battery

Gravimetric energy density ≥198Wh/kg
≥3000 cycles@70% SOH
10% to 80% SOC charging in 20mins, and supports peak discharge rate up to ≥8C
Passes a series of tests including UN38.3, UL2580, UL1642, GB/T31484-2015, GB/T38031-2020, GB/T31486-2015, GB/T38031-2025, GB/T31486-2024, and others.
