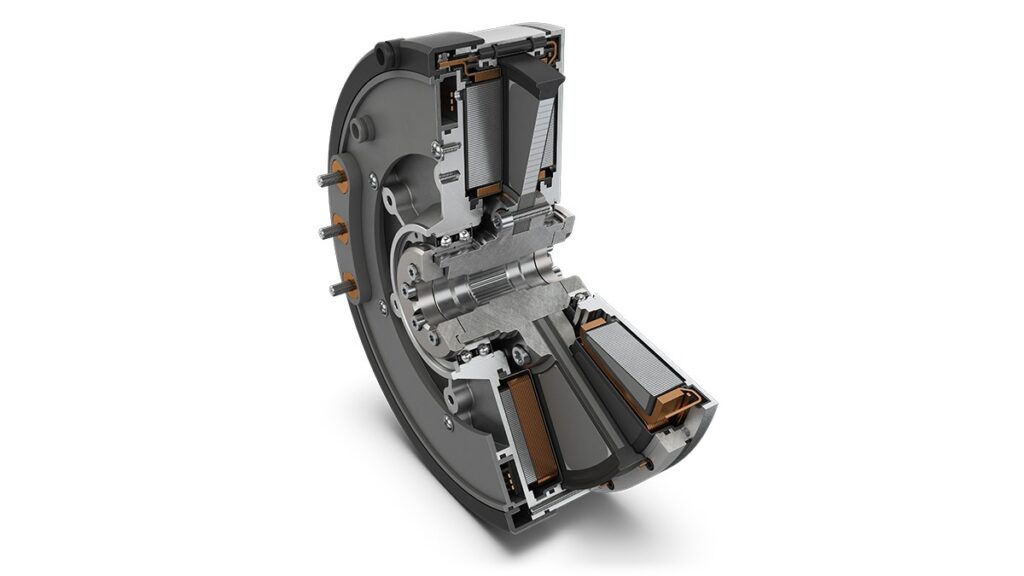

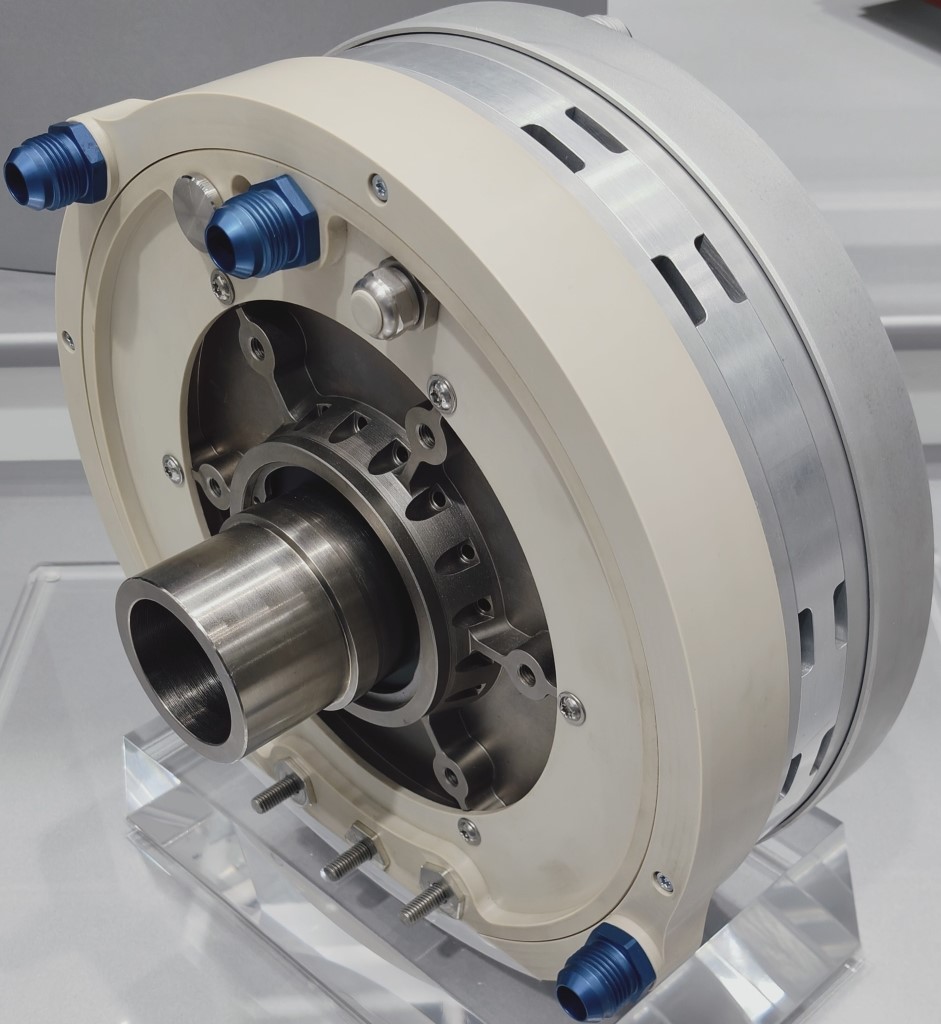

Compact high-performance traction motor
High power and torque density
Short axial length
High continuous power
Optimized efficiency
Excellent dynamic response
Short length offers new possibilities for modular construction kits
Direct oil cooling in the stator
Air cooled highly efficient yokeless rotor
Low rotor mass moment of inertia

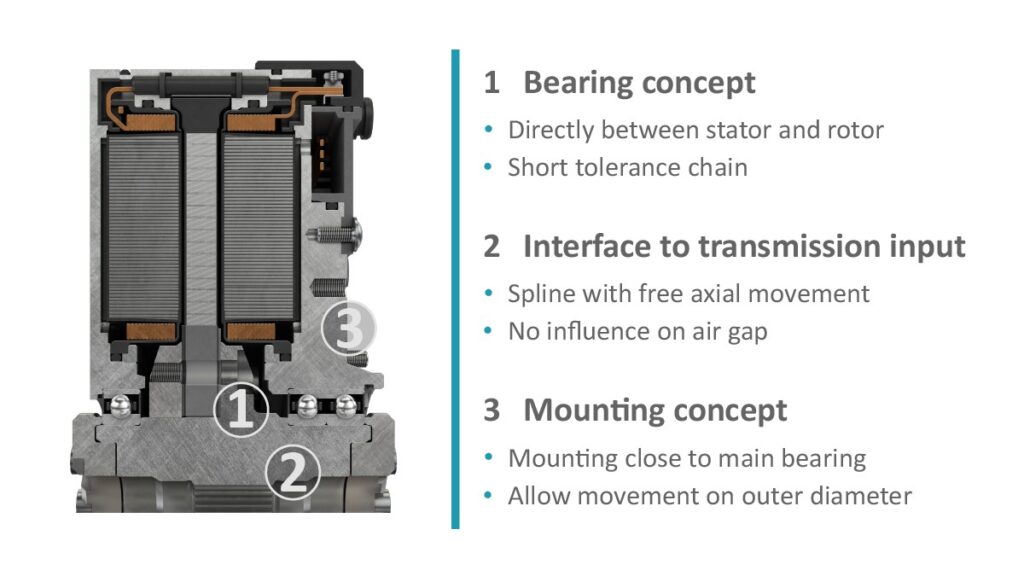

Rotor supported directly on the stator for robust series design
Power peak / continuous: 250 kW / 180 kW
Torque peak / continuous: 480 Nm / 350 Nm
Outer diameter: Ø 306 mm
Overall length: 93 mm
Mass: 33 kg
Rotor mass moment of inertia: 0.036 kg·m²
