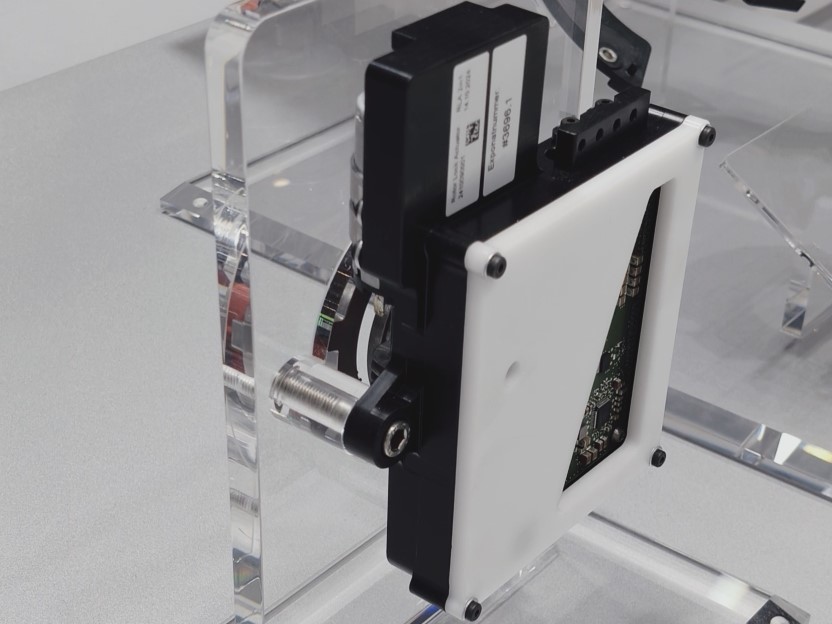

Schaeffler Rotor Lock Actuator – For eDrive Lock Application

Advantages

• System cost reduction (eliminate the traditional parking mechanism)
• Compact design (Rotor Position Sensor and Brush system), lightweight, variations reduction
• Independent vehicle weight and locking force make the customer flexible platform calability

Features

• Operating voltage: 12 V
• Temp. range: -40 ℃ to 140 ℃
• Static holding torque: 450 Nm
• Dynamic torque: up to 1050 Nm
• Positioning accuracy: < +/-1.0 deg electrical
• Response time: 200 ms
