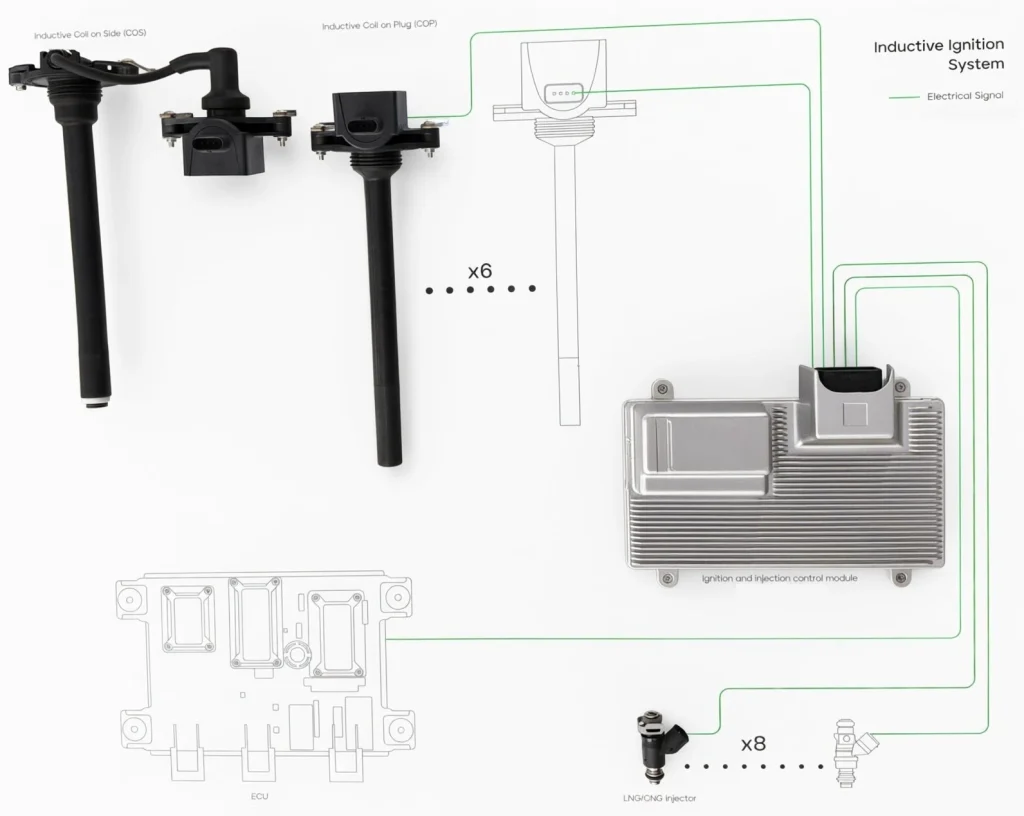

PHINIA Delphi Inductive Ignition System

This ignition coil is suitable for engines fueled by CNG, LNG and biogas.

It is a high-performance ignition coil that delivers high energy and high ignition voltage.
It features a built-in IGBT and replaceable hose.

Performance Parameters

• Mechanical Parameters
  • Weight: 440 g
  • Dimensions: 91x 94 x 281mm
  • Installation: Screw fastening
• Electrical Parameters
  • Supply voltage range: 16 – 32 V
  • Ignition voltage @ 50 pF: ≥ 40 kV
  • Ignition energy (@ 800V Zener): ≤ 135 mJ
  • Ignition duration (@800V Zener): ≤ 2,9 ms
  • Ignition current ≤ 135 mA
  • Primary coil current: ≤ 13 A
  • Misfire suppression: Internal suppression diode
  • Noise suppression: Inductor and 1kn resistor
• Connectors
  • Connector type: defined by customer requirements
  • Pin 1: Ground
  • Pin 2: Control signal
  • Pin 3: Diagnostic Signal
  • Pin 4: Power supply voltage

Core Advantages

• Higher ignition energy ensures stable combustion of the engine under extreme operating conditions
• The new-generation inductive ignition coil is equipped with a 4th pin for diagnostic functions
  1. Ignition current diagnosis
  2. Ignition duration diagnosis
• The new-generation inductive ignition coil provides diagnosis of ignition current and ignition duration, facilitating engine development and after-sales service
