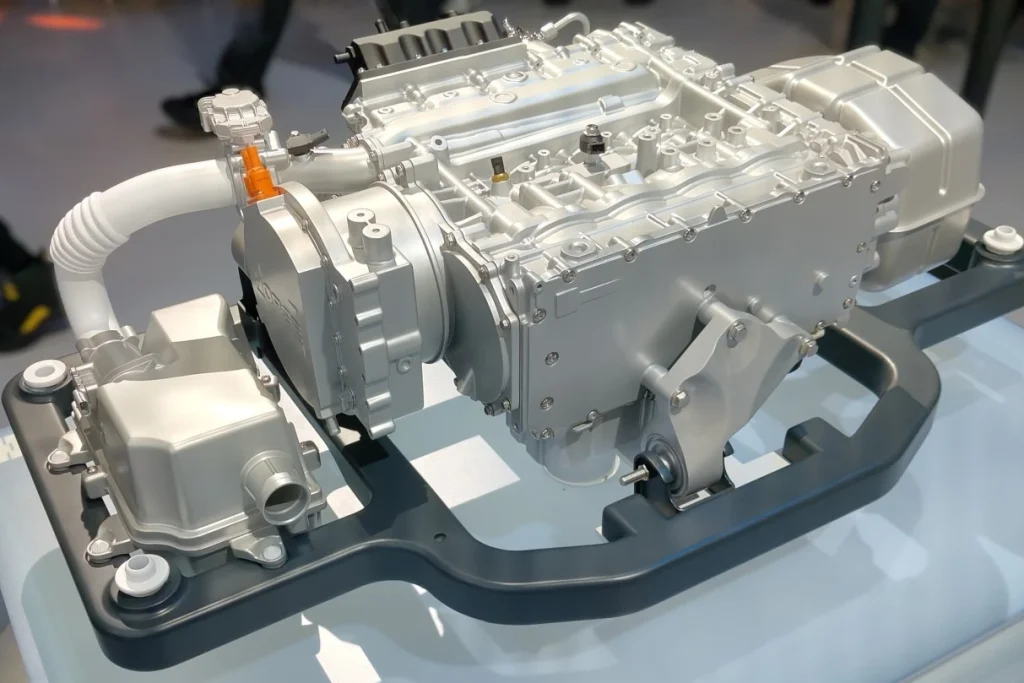

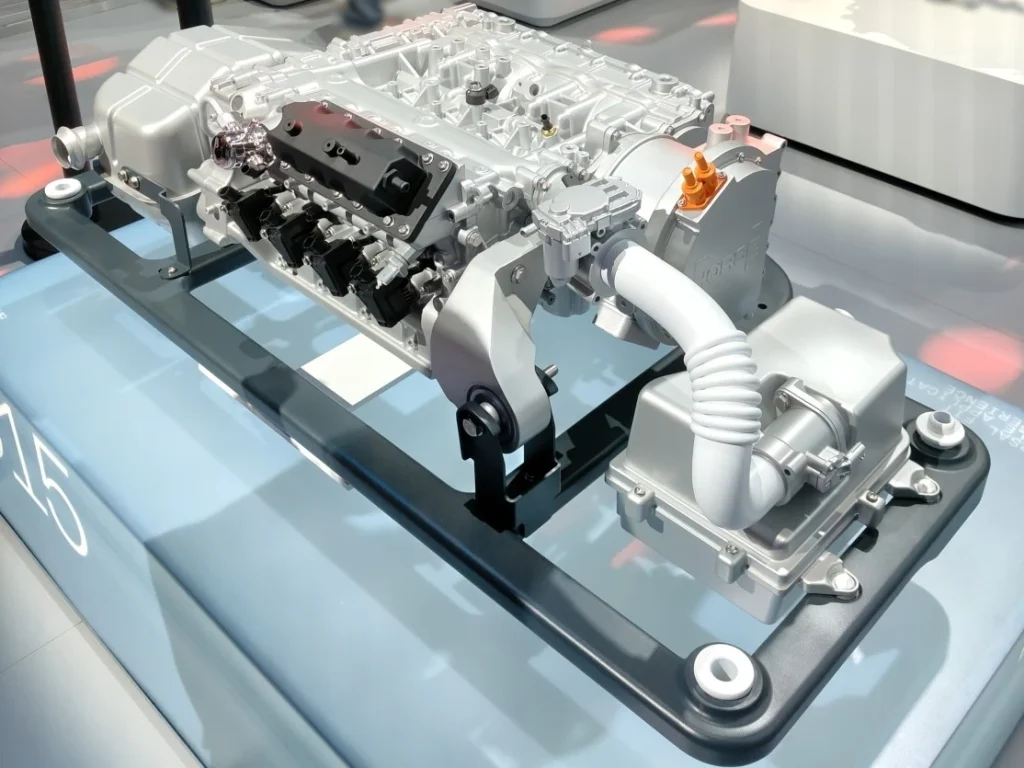

Horse Powertrain X-Range C15 and X-Range C15 Direct Drive

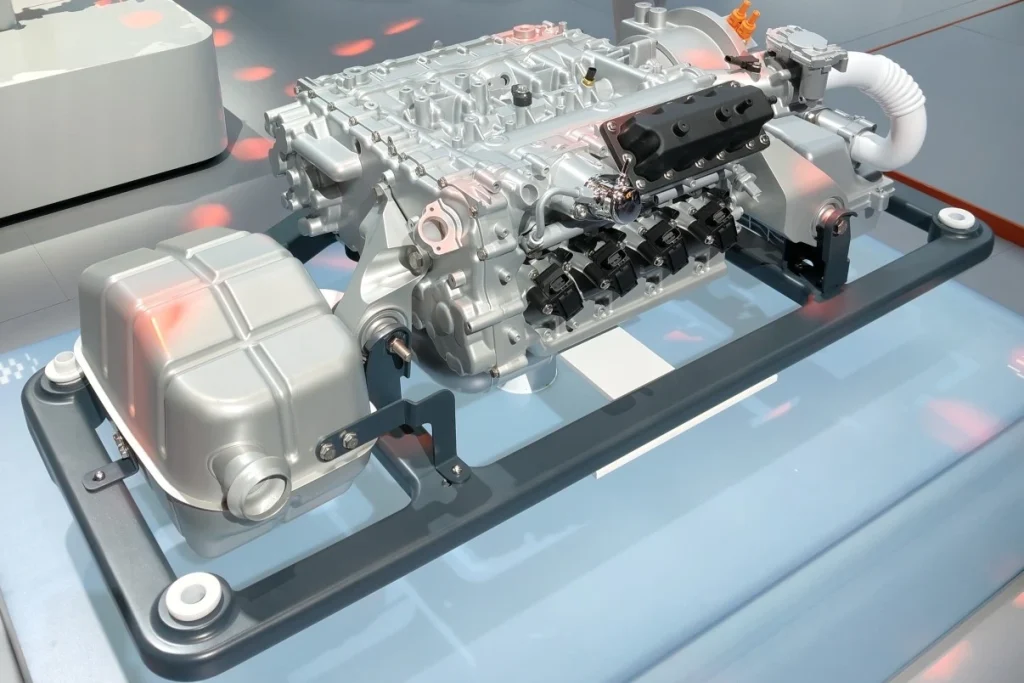

1.5-liter, 4-cylinder engine with integrated generator, exhaust and cooling
Horizontal or vertical installation
Naturally aspirated or turbocharged
Compatible with existing EDUs and multiple installation locations
| Maximum power | Naturally aspirated: up to 70kW, Turbocharged: up to 120kW |
| Fuel type | Gasoline and e-Fuel |
| Number of cylinders | 4 |
| Displacement | 1.5L |
| Induction | Naturally aspirated, Turbocharged |
| Compression ratio | NA 14.5:1 / T 11:1 |
| Fuel injection | Direct injection |
| Dimensions (mm) | 500 × 550 × 275 |

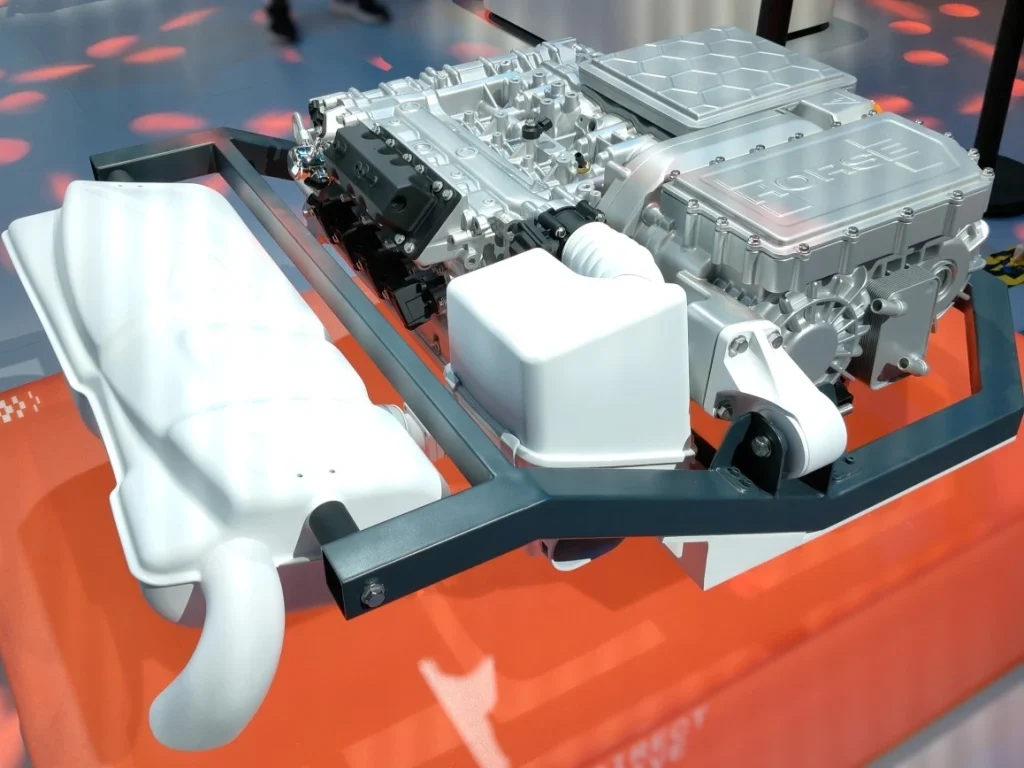

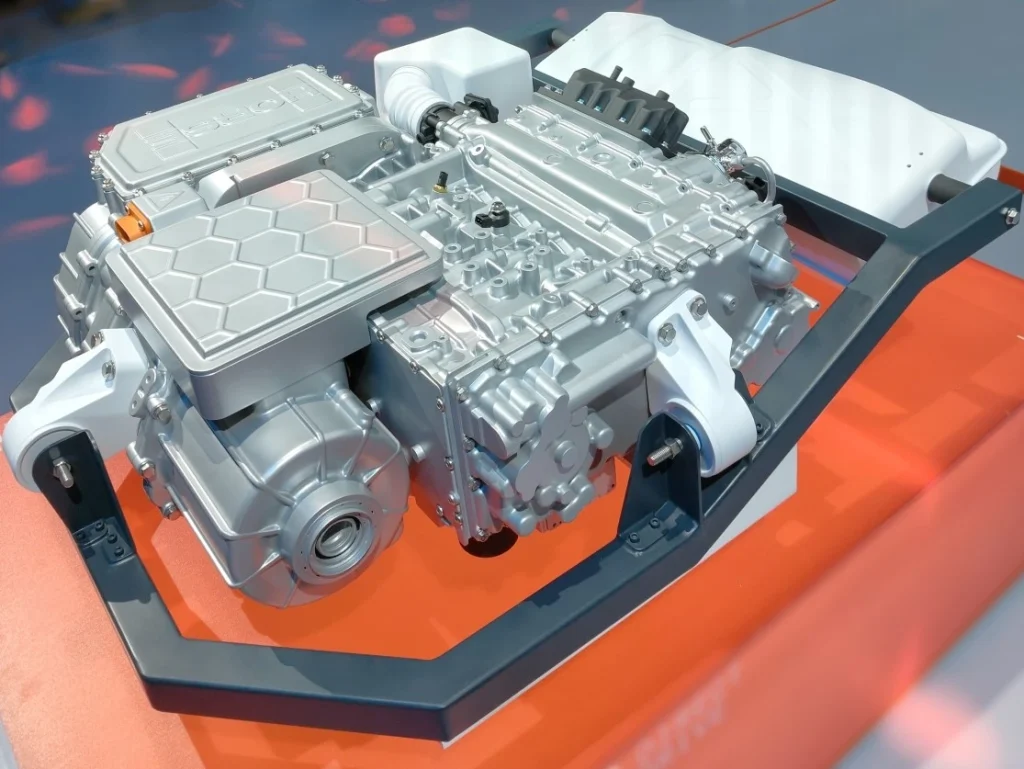

Integrated engine, hybrid transmission, electric motor and full suite of power electronics
Supports rear-wheel and all-wheel drive
Available with either a naturally aspirated or turbocharged engine
Enables BEV platforms to be the foundations of HEV, PHEV and REEV models by replacing rear electric drive unit
Designed to mount to rear subframe enabling a double isolated installation for best NVH
Compact integration of the exhaust and after treatment systems maximizes floor space for batteries or the passenger compartment
| ICE power | Naturally aspirated; up to 70kW, Turbocharged; up to 120kW |
| Displacement | 1.5L |
| Generator power | Naturally aspirated; up to 56kW, Turbocharged; up to 110kW |
| E-traction power | >200kW |
| Voltage | 800V |
