The fan cooling AD domain controller with 100TOPS computing power, is compatible with 7V and 10V sensor configurations, and integrates high-end functions such as navigation on highway and navigation on city road without HD Map, will be mass-produced in 2024.
SOC: SA8650P
Size: 275×165×55mm
Power Consumption: ≤60W
Computing Power: 100TOPS
Weight: 1500g
Operation Temperature: -40°C ~ +70°C
IP5K2
Fan cooling
Electrical Interface: CAN-FD×5 GNSS×1 DSI3×4 100BASE-Tx*1 100BASE-T×1 1000BASE-T1×2 GMSL2 in×12 GMSL2 out×2 GMSL3 out×1

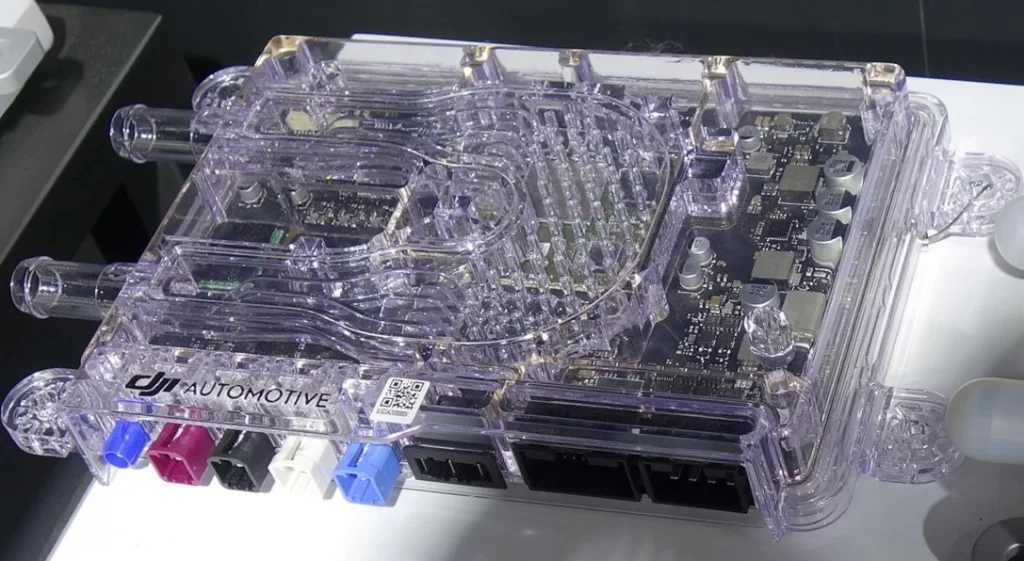

SOC: SA8650P
Size: 275×165×40mm
Power Consumption: ≤60W
Computing Power: 100TOPS
Weight: 1300g
Operation Temperature: -40°C ~ +85°C
IP5K2
Liquid cooling
Electrical Interface: CAN-FD×5 GNSS×1 DSI3×4 100BASE-Tx*1 100BASE-T×1 1000BASE-T1×2 GMSL2 in×12 GMSL2 out×2 GMSL3 out×1
The water cooling AD domain controller with 100TOPS computing power, is compatible with 7V and 10V sensor configurations, and integrates high-end functions such as navigation on highway and navigation on city road without HD Map, will be mass-produced in 2024.
