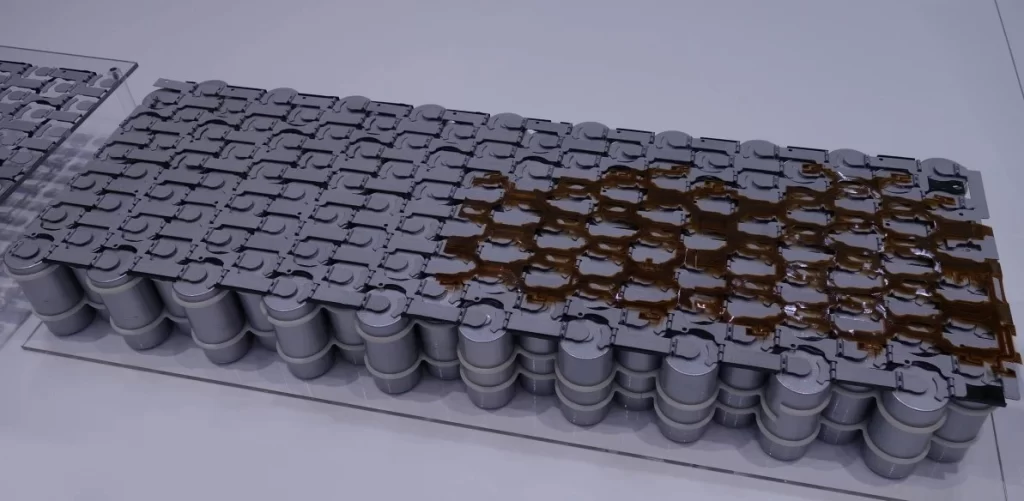

Cell contacting systems for lithium-ion batteries with flexible printed circuit board (PCB) as signal carrier are matched exactly to customer specifications and can be positioned and welded directly onto the cell group.
Complex CCS geometry due to high number of serial and parallel interconnection, can be displayed at a small distance between the pole positions
Designed for complex load cases (mechanical, thermal and electrothermal)
Integrated variable fuse/fuse adapted to the load cases
Flexible PCB allows different circuit variants in multi-layer design as well as low overall height with tolerance compensation shafts (in x and y directions)
Cell-to-pack design modularly expandable, thus allowing complex CCS variants to be displayed
