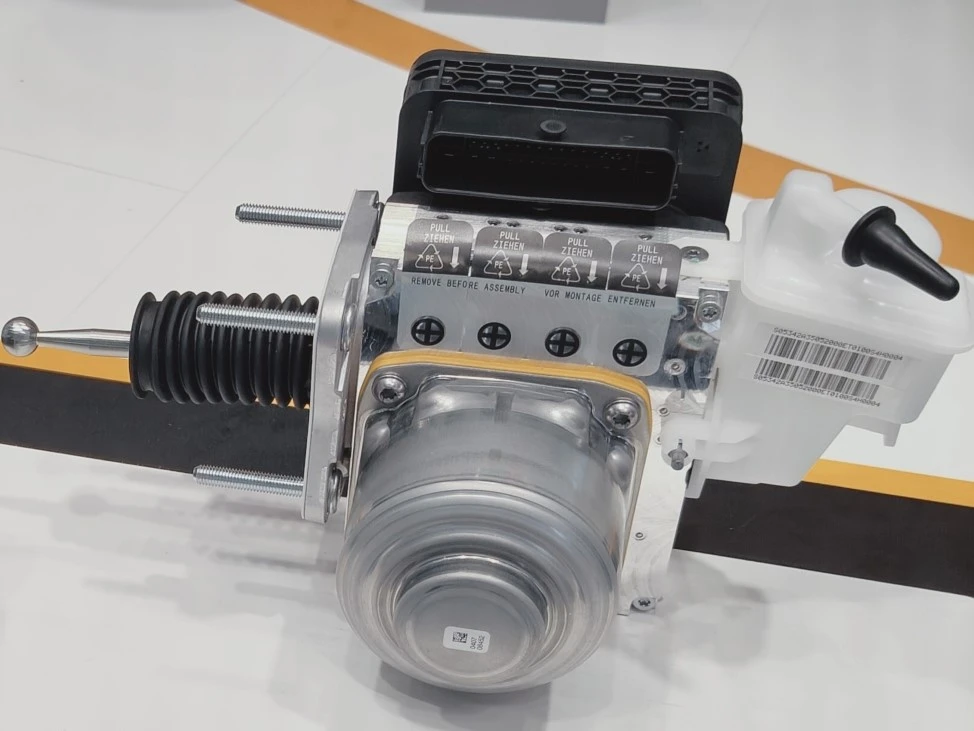

The MK C2.1 is adaptive to latest market requirement design of Continental’s 2nd brake-by-wire system.
The system integrates the master cylinder (MC), brake booster and control systems (ABS and ESC) into a single compact and weight-saving (approximately 30%) module.
The MK C2.1 is built upon Multi-logic Architecture, which support distibuted ad centralized E/E architetcure.
Holistic motion control is optional to be integrated. HAD ready with MK100 HBE.
Box volume: approx. 4.3 dm³
Weight: approx. 4.7 – 5 kg (depending on variant)

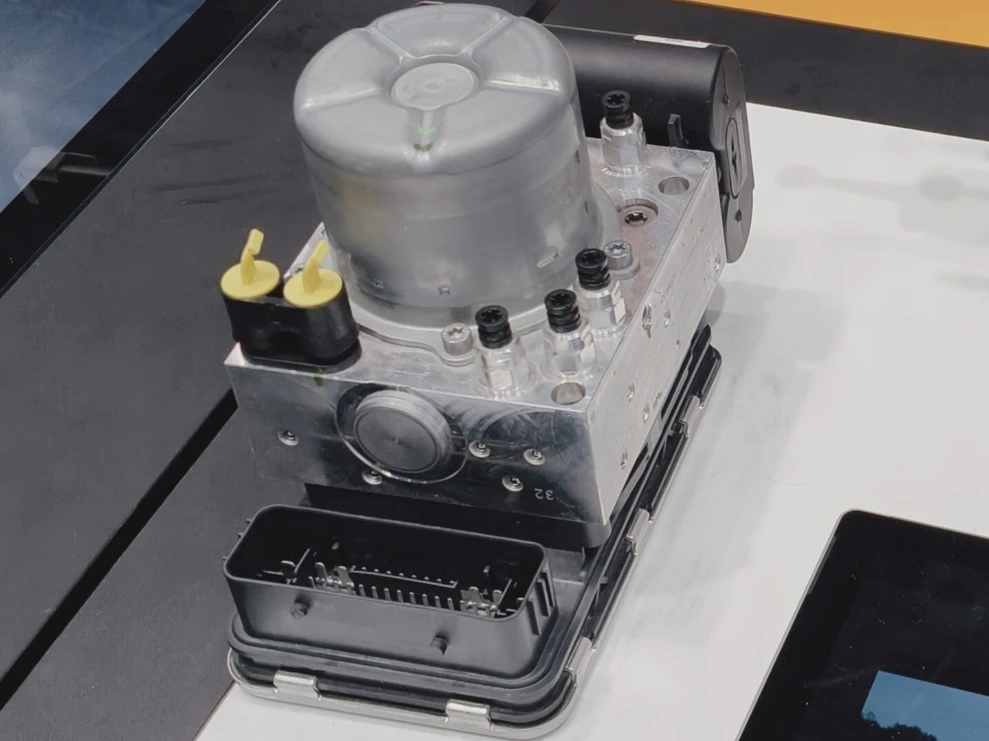

New concept of an integrated Air Supply & Control Unit for four corners system
in the field of air suspension.
High leveling and variable speed
Low compressor vibration, low noise level
Integrated Motor, Compressor, ECU, Dryer
Optional: Integrated Damping Control
Optional: Integrated Spring Rate Control
Reduced application effort
Weight: app. 3,6 kg, reduction of 1,0 – 1,5 kg
6mm air lines to the corners standard
Compact box size: 3,2 dm³
